Din Rail GYM9 2P MCB with Autoreclose Device Automatic Reset Circuit Breaker Smart Home MCB Auto Recloser(2P-MCB-25A,GRD9L-R-DC12V-Auto)

Price: $97.74
(as of Jun 18, 2025 04:50:05 UTC – Details)

Miniature Circuit Breakers
Circuit Breakers

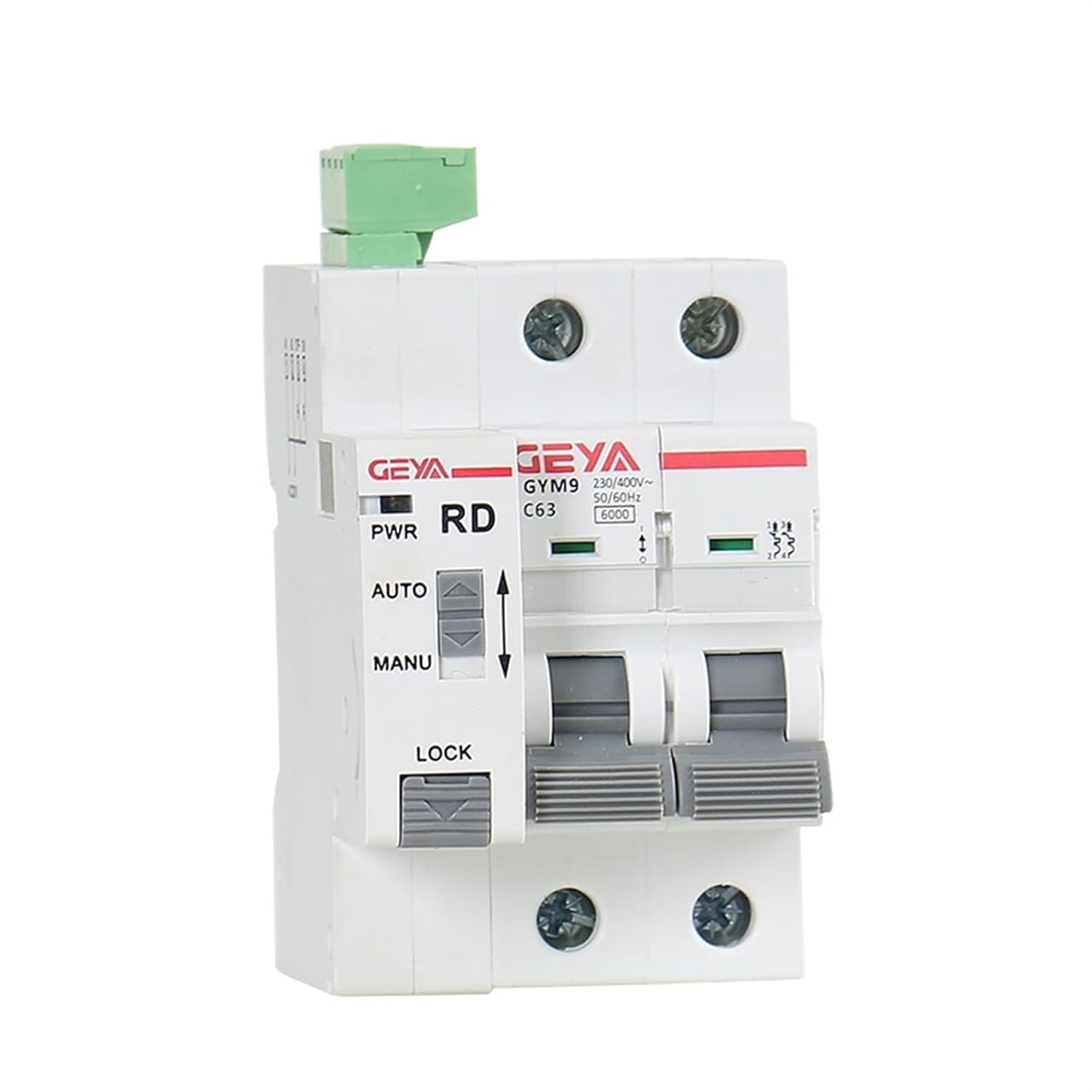

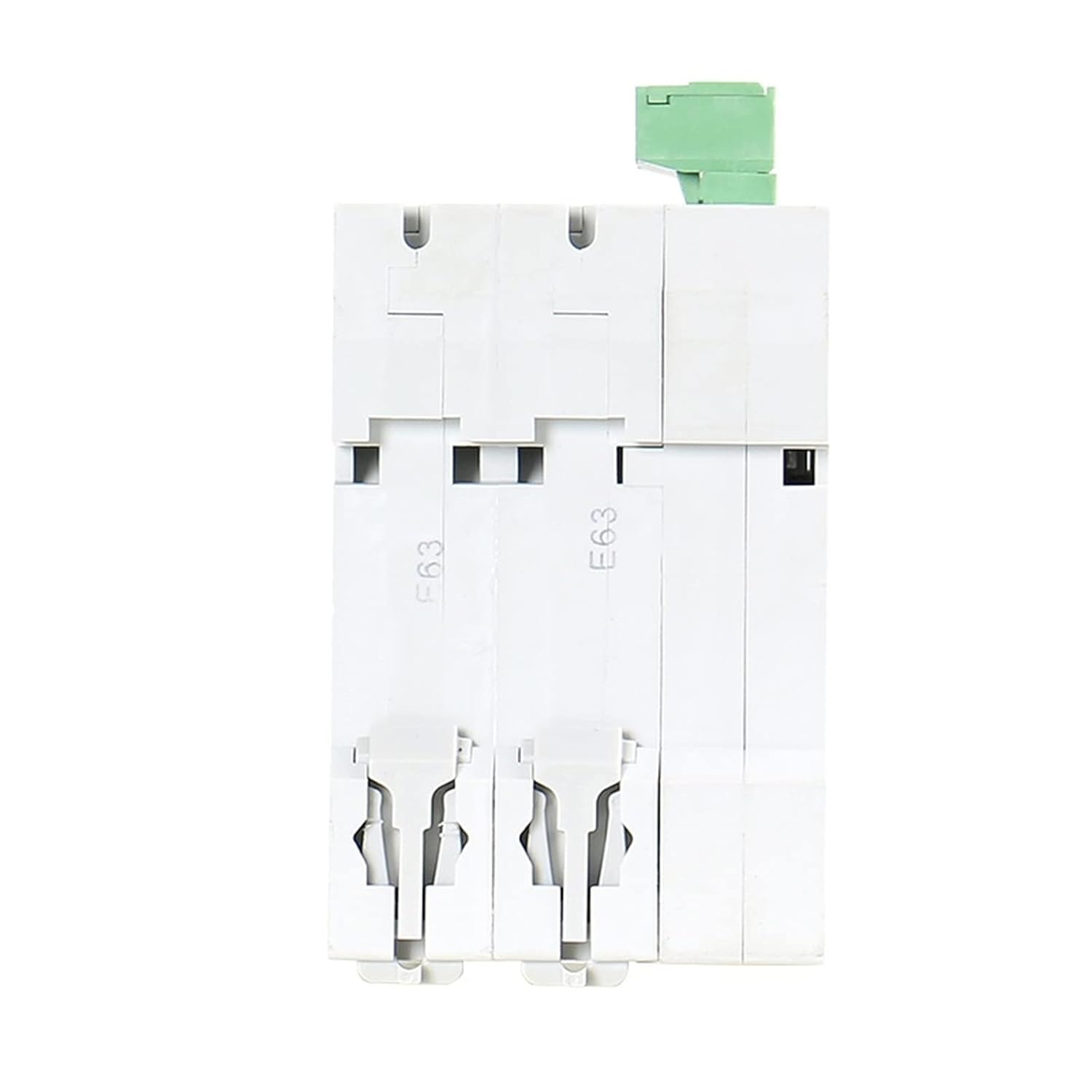

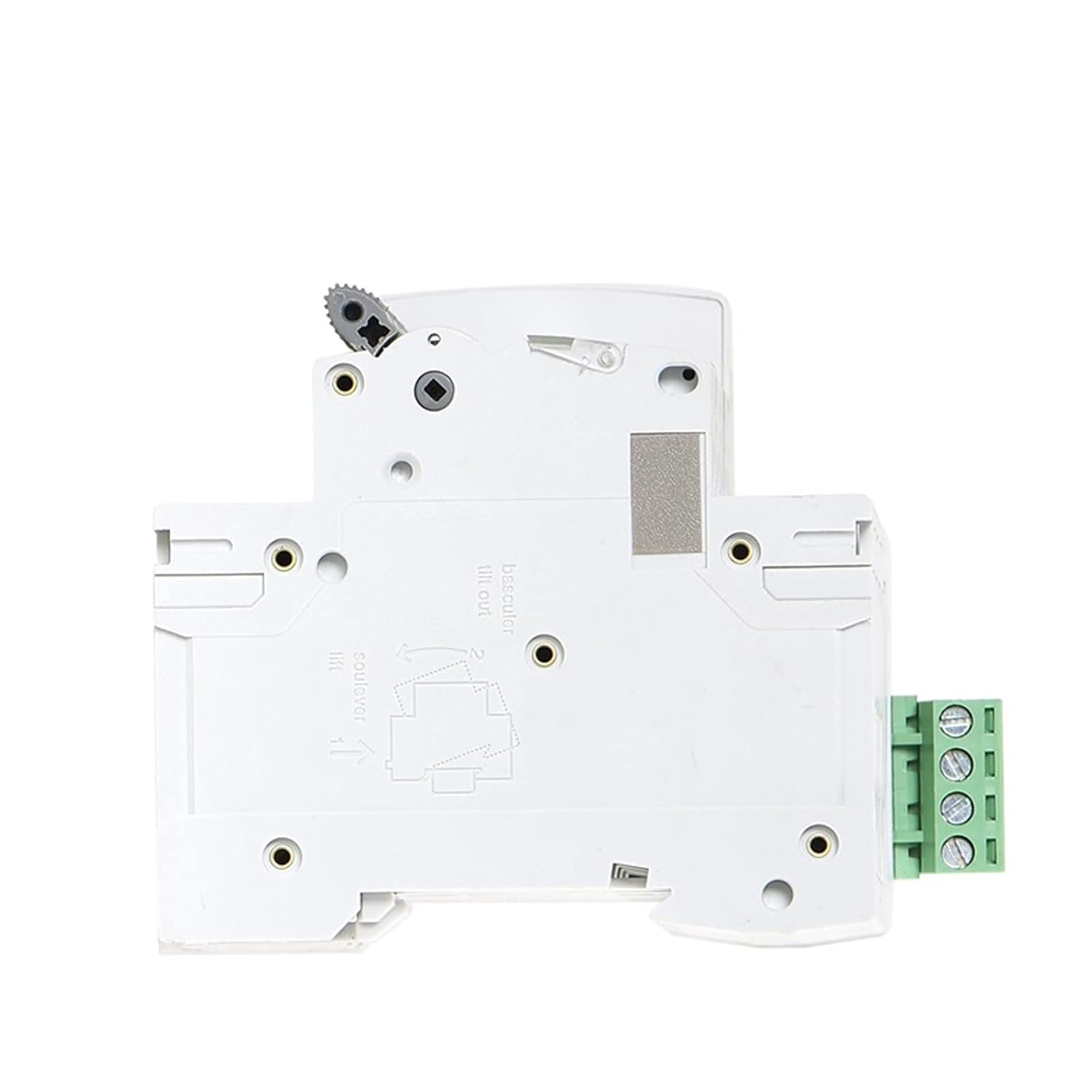

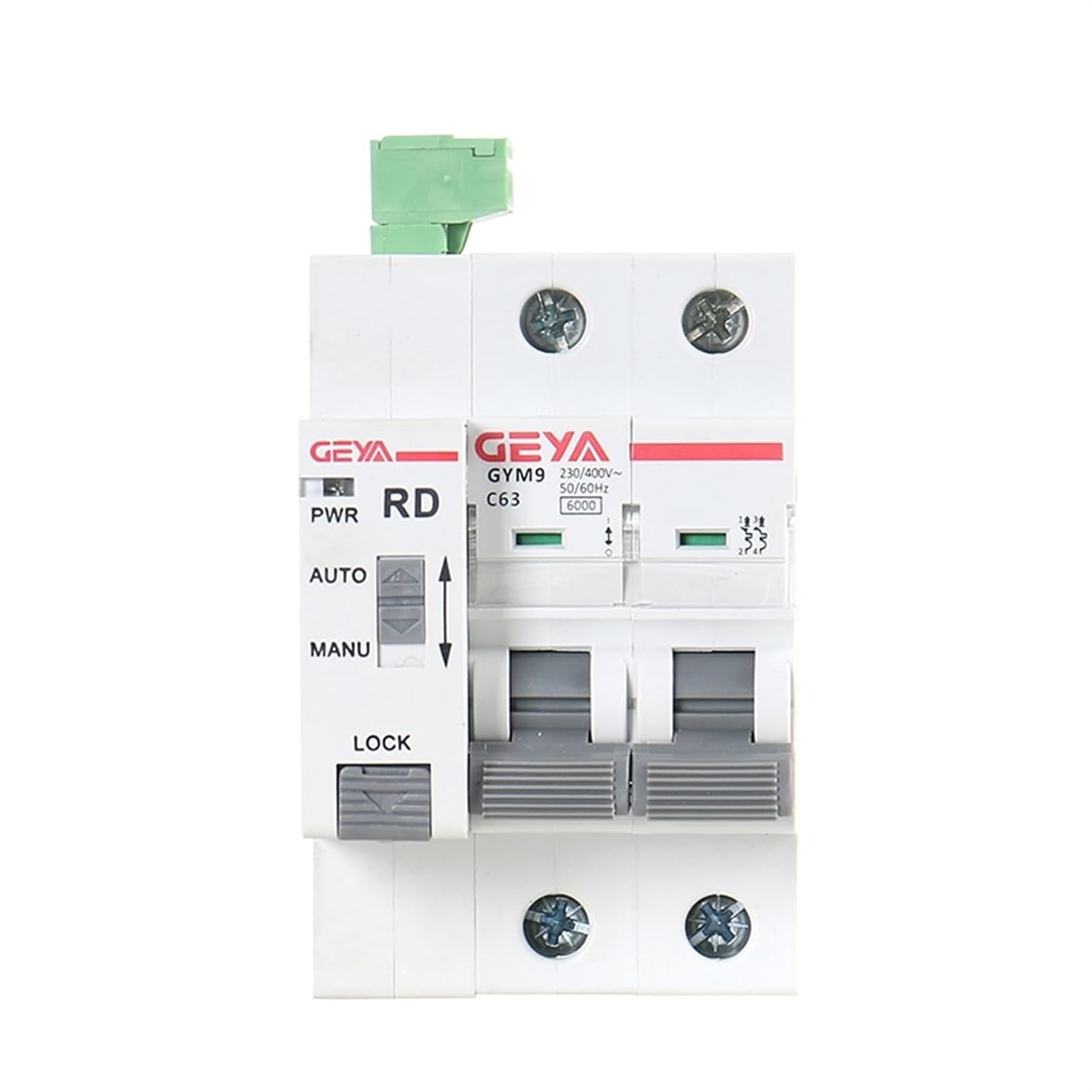

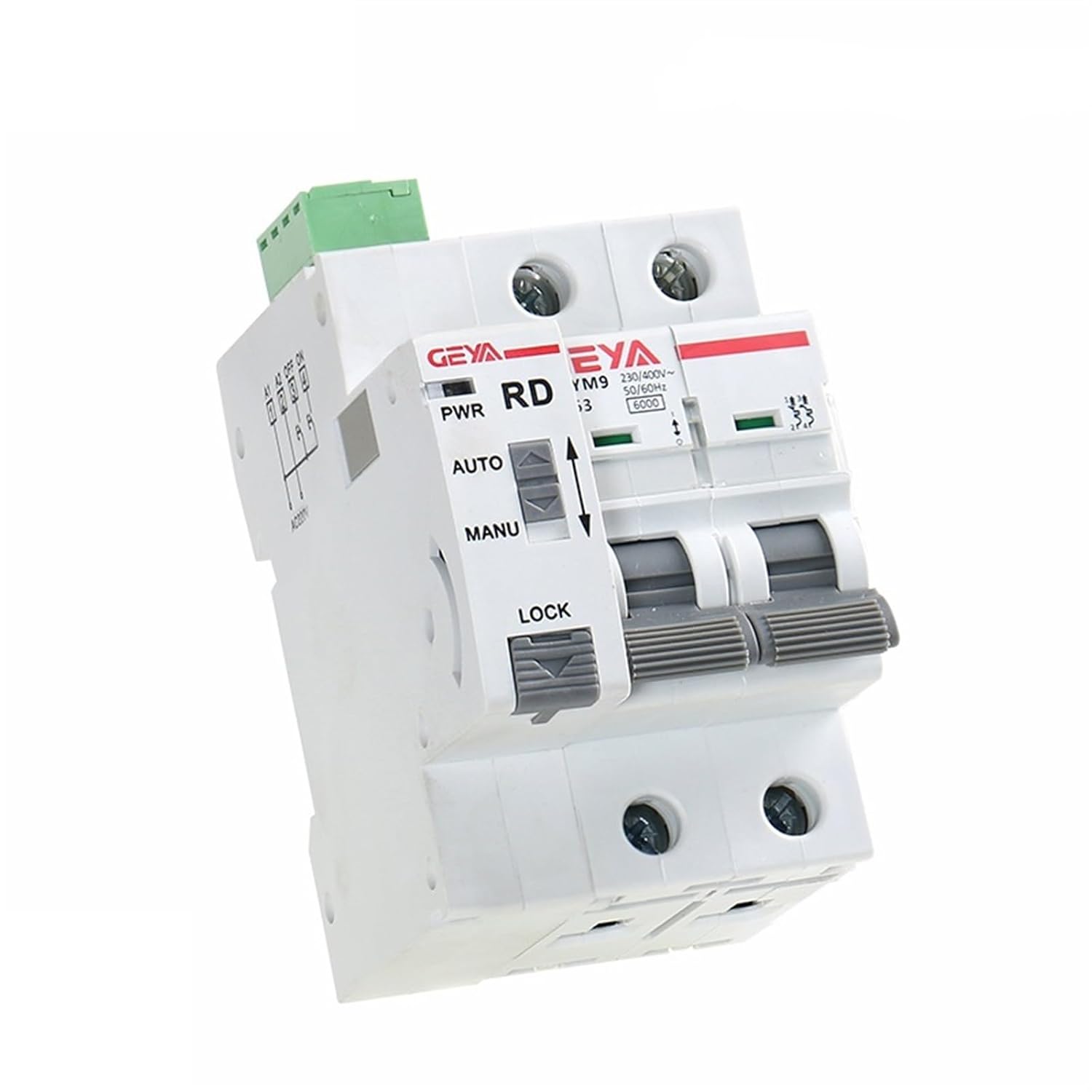

Din Rail GYM9 2P MCB with Autoreclose Device Automatic Reset Circuit Breaker Smart Home MCB Auto Recloser
****This link is GRDM9-R type RD-Auto Reclose Control Mode, auto reset after 10s, 60s, 300s… could be ，
If you need other reclose control mode, pls send me message.
HOW TO CHOOSE MCB RECLOSER Control Mode?
Recloser 6 type choice
GRD9L-C-DC= Recloser is Swicth Input Control Mode, DC12V
GRD9L-C-AC= Recloser is Swicth Input Control Mode, AC220V
GRD9L-S-DC= Recloser is RS485 Control Mode, DC12V
GRD9L-S-AC= Recloser is RS485 Control Mode, AC220V
GRD9L-R-DC= Recloser is Auto Reclose Control Mode, DC12V
GRD9L-R-DC= Recloser is Auto Reclose Control Mode, AC220V
General
GYM9+RD miniature circuit breaker with remote control the opening and closing function is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 6A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.
-Control module and MCB using the built-in drive.
-Can choose to open or close the RD module.
-The RD module can be locked by a padlock.
-In complicance with IEC/EN60898-1.
-With indicator function in the contact position.
-Bilateral busbar wiringcapabilities to adapt to thewider use of premises.
-Maximum connecting ability of 25mm2 , wiring 3N*m, applicable to a variety of installing equipments, wiring stronger.
Package Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.1 Pounds
Item model number ‏ : ‎ CJRCWKIQ
Department ‏ : ‎ unisex-adult
Date First Available ‏ : ‎ June 10, 2025
Manufacturer ‏ : ‎ CJRCWKIQ
ASIN ‏ : ‎ B0FCM87474
Country of Origin ‏ : ‎ China
