HD Backup/Front/Side View Camera, GreenYi AHD 720P Reverse Rear Cam for Car, SUV, RV, Trailer, Camper, Van, Pickup, Metal Shell, Adjustable Fisheye Lens, 170 Degrees Viewing Angle(Black)

Price: $199.99 - $30.99
(as of Jun 15, 2025 06:23:36 UTC – Details)

Product Description

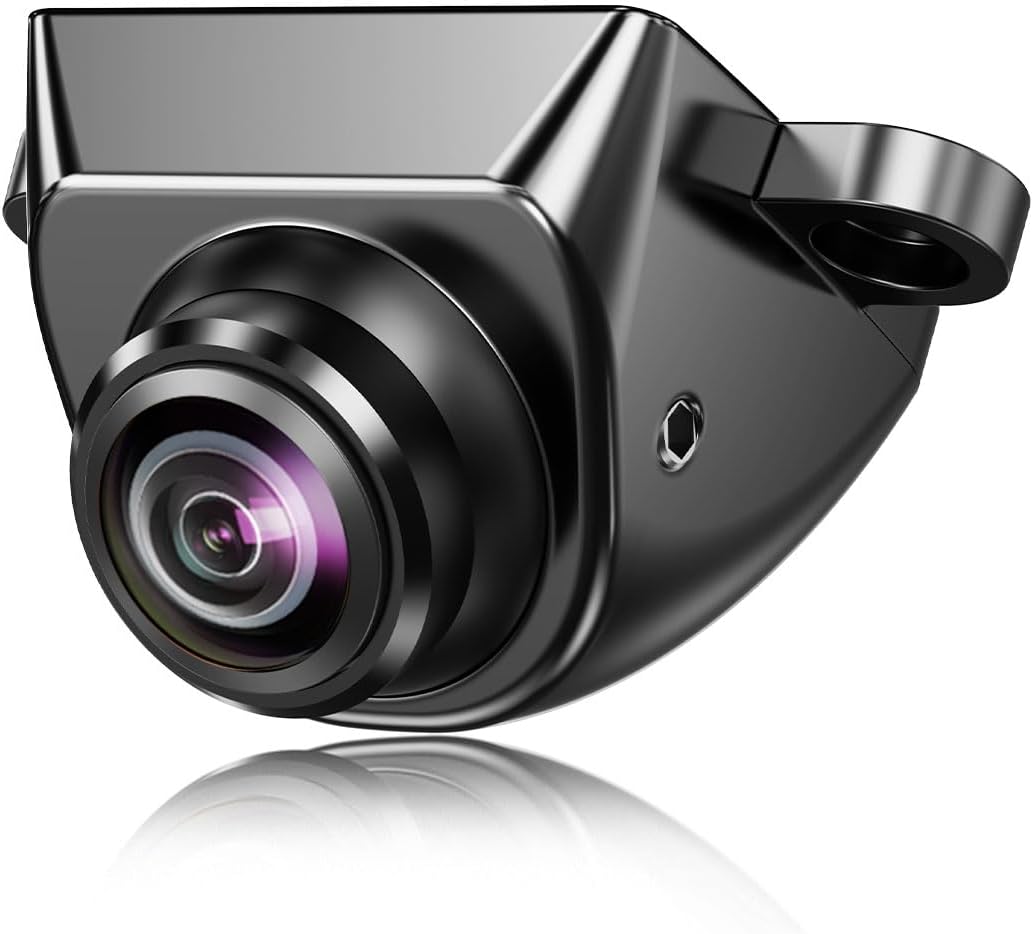

GreenYi HD Backup Camera with Adjustable Lens

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

This backup camera’s body can be rotated for 360 degrees, its lens can be rotated for 45 degrees(right to left) + 45 degrees(up to down), you can get a perfect view with all kinds of position installation. There is an extra silicone holder included in case you don’t want to drill a hole.

Features of Car Rear Camera Work Under Extreme Condition

Our camera is IP68 waterproof, no problem with car washing, rain or other bad weather.

Also works well in extreme high or low temperature condition.

Starlight Night Vision

Backup camera for car has a good performance even when reversing at dark night, high clarity sharp colorful image will still show on your monitor.

Double-shielded Video Cable

GreenYi backup camera comes with 26FT / 8M long video cable, enough for most vehicles. Double-shielded design to ensure high quality video signal.

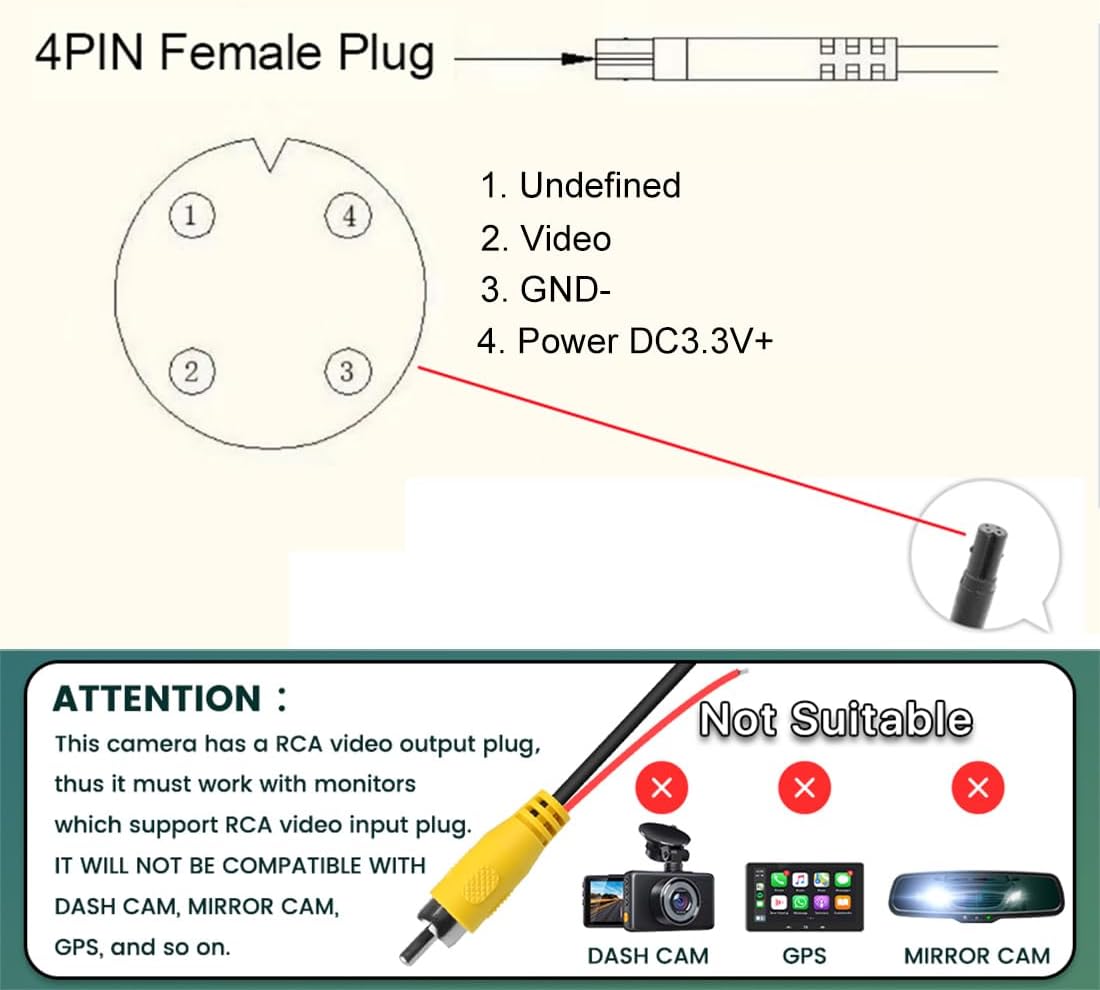

4Pin Backup Camera for Car

4pin design, easier installation than that of RCA. Can’t be connected to any dashcam, mirror cam or GPS monitors that doesn’t support RCA video input.

Stainless Steel Screws

Stainless steel screws are made of stainless steel 304, which has excellent corrosion resistance and mechanical strength.

Applies Best Material

Fisheye lens to get wide view angle;

Glass lens to filter impurities;

F1.2 aperture to capture more light input;

C4 chip to better process the image;

Applying New Chip

Applying CCD AHD chip, our back up camera can show high definition and stable images.

Include Everything You Need

We provide 26FT double-shielded video cable and 4pin power cable, some extra zip ties and electrical tape to help you install more conveniently.

Two Holders for Selection(Holder 2 needs to buy separately):

Holder 1: The backup camera comes with this metal holder installed well by default. You can install it with horizontal or vertical(upside down) mounting.

Holder 2: This metal holder is for flush hidden mounting, need to drill a hole. Need to buy separately with ASIN: B0BLG78TTM.

About GreenYi Vehicle Backup Camera:

NOTE: All of our 4pin backup cameras can’t be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input.

* Please test the back up cameras before final installation.

* If there is no option for AHD 720P 30HZ/NTSC in your video signal settings page of your monitor, then please don’t cut the orange cable.

* If you connect the backup camera for pickup to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.

* There is a pink color wire on your head unit usually, please connect it with the 26FT video cable’s trigger wire.

* Before you routing, if there is no image on the screen, other than check the camera, please check display settings as well. You can use other device with RCA connector, such as TV to check if the camera works.

Package:

1. 1 * HD 720P Backup Camera 2. 1 * 26FT Double Shielded Video Cable 3. 1 * 5FT Power Cable 4. 1 * Metal Holder set 5. 1 * Accessory Bag for Metal Holder

6. 1 * User Manual 7. 1 * Adhesive Tape 8. 1 * Removal Tool 9. 5 * Zip Ties 10. 5 * Wire Clamps 11. 1 * Mini Screwdriver

12. 1 * Electric Adhesive Tape 13. 2 * T-tap Sets

Specifications

Image Sensor CCD AHD Chip Power DC 12-24V Resolution 1280*720 Pixels Viewing Angle 170 degrees Waterproof Grade IP68 Minimum Illumination 0.01Lux / F1.5 TV System NTSC Signal to Noise Ratio ≤48dB Working Humidity 80%RH Operating Temperature -22℉— +140℉ Storage Temperature -40℉—+176℉

Compromises Other Backup Cameras’ Advantages:

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 119

4.2 out of 5 stars 563

4.1 out of 5 stars 539

3.9 out of 5 stars 101

4.0 out of 5 stars 116

4.0 out of 5 stars 37

4.0 out of 5 stars 503

Price

$30.99$30.99

$28.99$28.99

—

$34.99$34.99

—

$36.99$36.99

—

Adjustable Camera Body

✔

✔

✘

✔

✘

✔

✘

Viewing Angle

170 Degrees

170 Degrees

170 Degrees

170 Degrees / 120 Degrees

170 Degrees / 120 Degrees

170 Degrees

170 Degrees

Video Signal

CVBS to AHD

CVBS to AHD

CVBS to AHD

AHD to CVBS

AHD to CVBS

CVBS

CVBS

Support Guideline on / off

✔

✔

✔

✔

✔

✔

✔

Vertical or Horizontal Mount

Both Available

Both Available

Horizontal

Both Available

Horizontal

Both Available

Horizontal

Resolution

1280x720p

1280x720p

1280x720p

1920x1080p / 1280x720p

1920x1080p / 1280x720p

960x720p

960x720p

Can be Used as

Front / Rear / Side View Cam

Front / Rear / Side View Cam

Reverse Camera

Front / Rear / Side View Cam

Reverse Camera

Reverse Camera

Reverse Camera

720P Universal Car Backup Camera—1280*720 resolution, high clarity, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect. High Definition 1280x720p reversing camera for car is compatible with all monitors which supports RCA video input: double din stereo radio head unit, OEM navigation, Android DVD player, rear view mirror monitor, backup TFT LCD monitor, etc.
Built-in Rotating Metal Camera Body—Unlike old-fashioned car cameras which can only adjust the viewing angle by adding gaskets, you can rotate GreenYi pickup rear camera’s lens part to find a best viewing angle with the help of the mini wrench, never need to worry about too high or too low image shown on the monitor. Mini design, solid shinning metal housing, shockproof, longer service life.
Rearview Camera with Three Switcher Cables—Cut white cable to switch mirror image(rear view) to non-mirror image(front view). Cut orange cable to switch CVBS video signal to AHD video signal, if your monitor supports AHD 720P 30HZ(NTSC) video settings, you can try it. Cut green cable to turn off the guide line. Please reconnect power supply after cutting any cable, you can also connect it back after cutting the cable if needed.

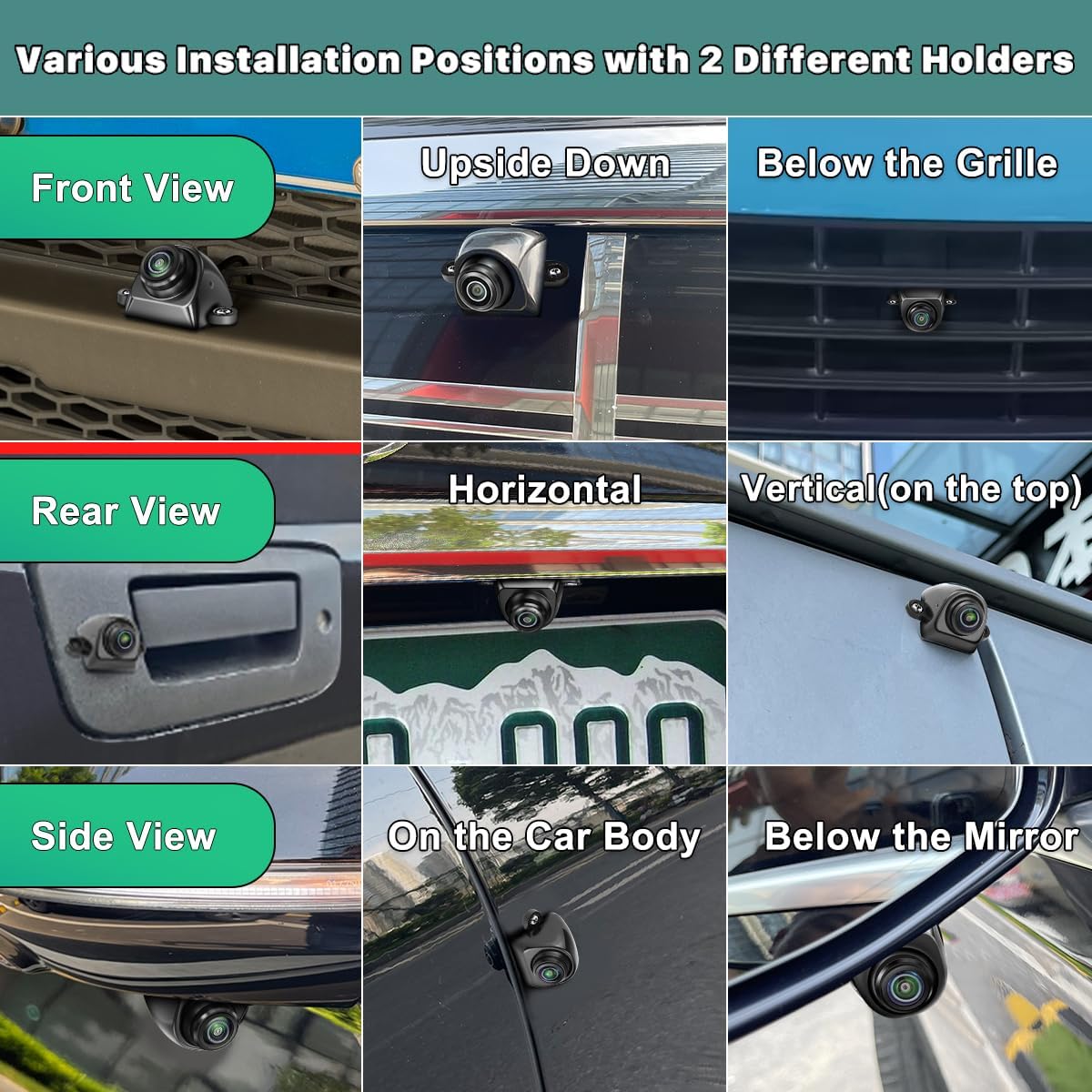

Versatile Vehicle Front / Rear / Side View Camera—You can install the rv blind spot camera at any position you want with vertical(upside down) or horizontal mounting as the camera body is 360-degree-rotatable and there is an extra silicone shell for you if you don’t want to drill a big hole: front bumper/grille, rear deck lid/rear top/trunk handle/fender/5th wheel/tailgate, below the side mirror or on the car body, etc.
4Pin Backup Camera—Please note that all of our 4pin backup cameras can’t be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input AS the pin definition is different.
Warranty and Customer Service—We offer one month money back, two years new replacement and lifelong customer service. Anything unclear, please contact without hesitation, we will reply back within 24 hours usually.
